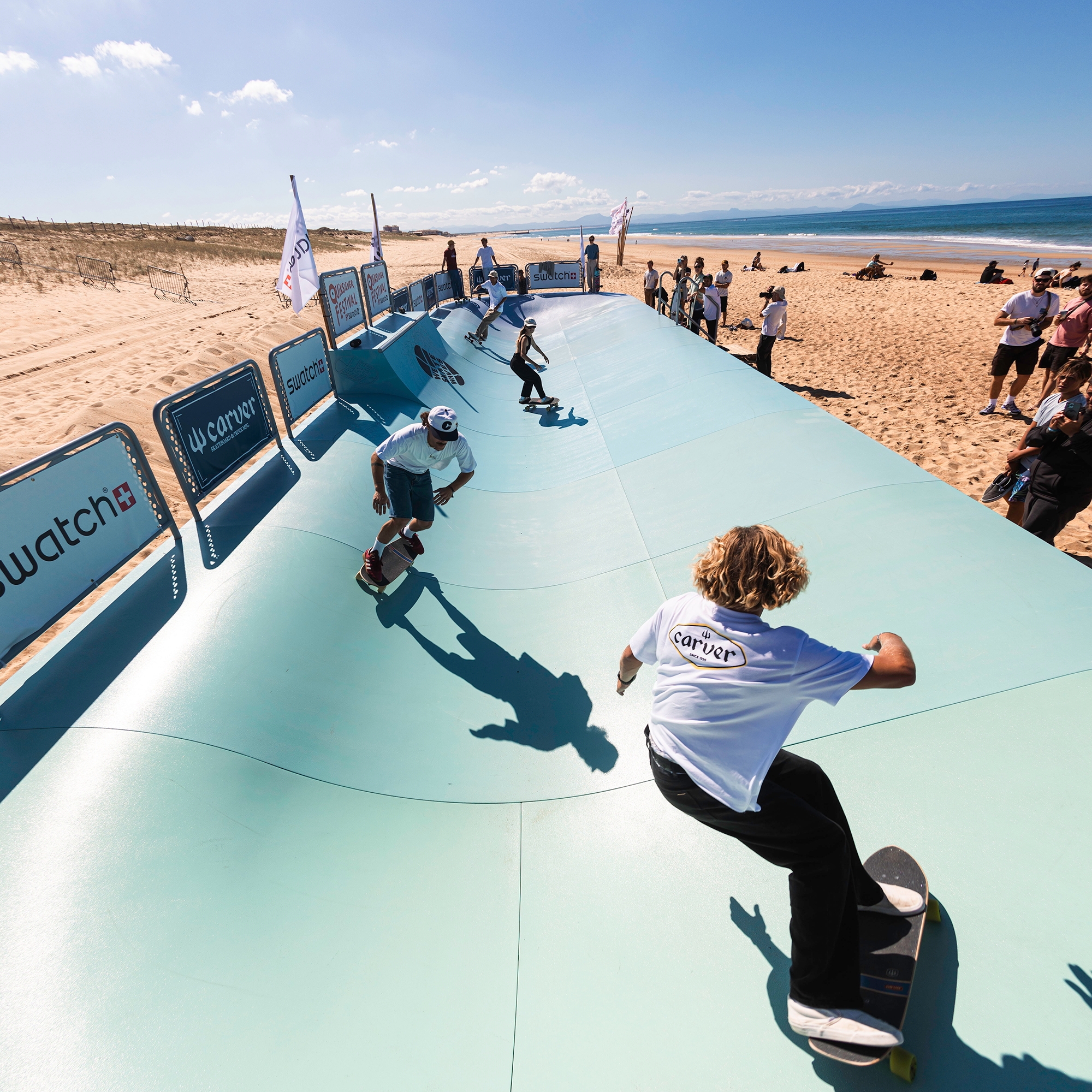

Surfskaters carving the Carver Wavebank on the beach
Surfskater hitting the lip of the Wavebank's steep wall
Surfskater carving the Wavebank transition

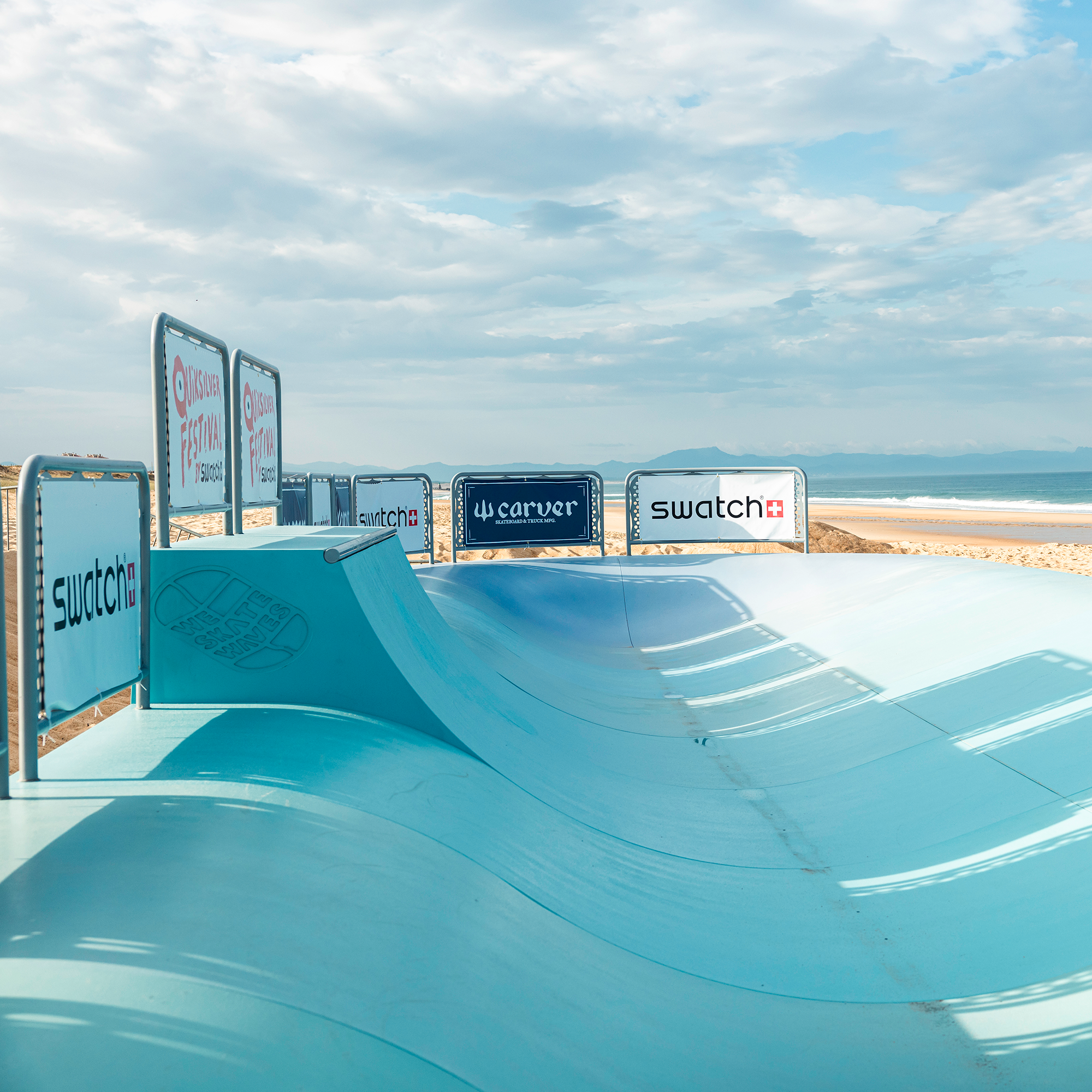

The empty Wavebank showing the hip and the curve of the walls
クリックして展開ビューを開きます

Carver Wavebank Build Plans | Digital Download

価格
$0

Ships Free¹

在庫あり、発送準備完了

Fully Dimensioned Plan View

Sheet A1 lays out the whole Wavebank at 63′-7″ by 21′-4″. Every segment is measured, the ramp ribs repeat at 8′ on center through the straight, and elevation tags mark each deck, the flat bottom, the hip and both high corners. Numbered markers point straight to the matching profile on Sheet A2.

Five Rib and Section Profiles

Sheet A2 draws the ramp rib, hip rib, hip section, high corner and the coping line through the corners. Each profile calls out its radii, its angles and its straight runs, from the 1′ radius at the coping to the 26′ radius on the face. Your builder cuts from numbers.

Two Walls, One Loop

The mellow face is for drive. The steeper 30° wall is for snap. Banked corners rise to 3′-9″ and carry your speed from one wall to the other, so the line never ends at a flat deck. It rides like a wave that doesn’t close out.

Print-Ready Sheets

Three 11″ × 17″ sheets in one PDF, sized for any print shop or a tabloid printer at home. All dimensions are in feet and inches. Build from the dimensions, not the scale.

Made for Sessions

One rider pumps the straight while the next drops in from the deck. The oval keeps every line moving, so the session never stalls at a dead end. Backyard crew or shop demo day, there’s room for everyone to get a wave.
